产品概述
压铆螺母外形呈圆形，铆接面带有压花齿及导向槽， 通过压花齿压入钣金预置孔位形成机械互锁从而固定于薄板。根据材质可分为 S、CLS、CLA、SP 四种类型。

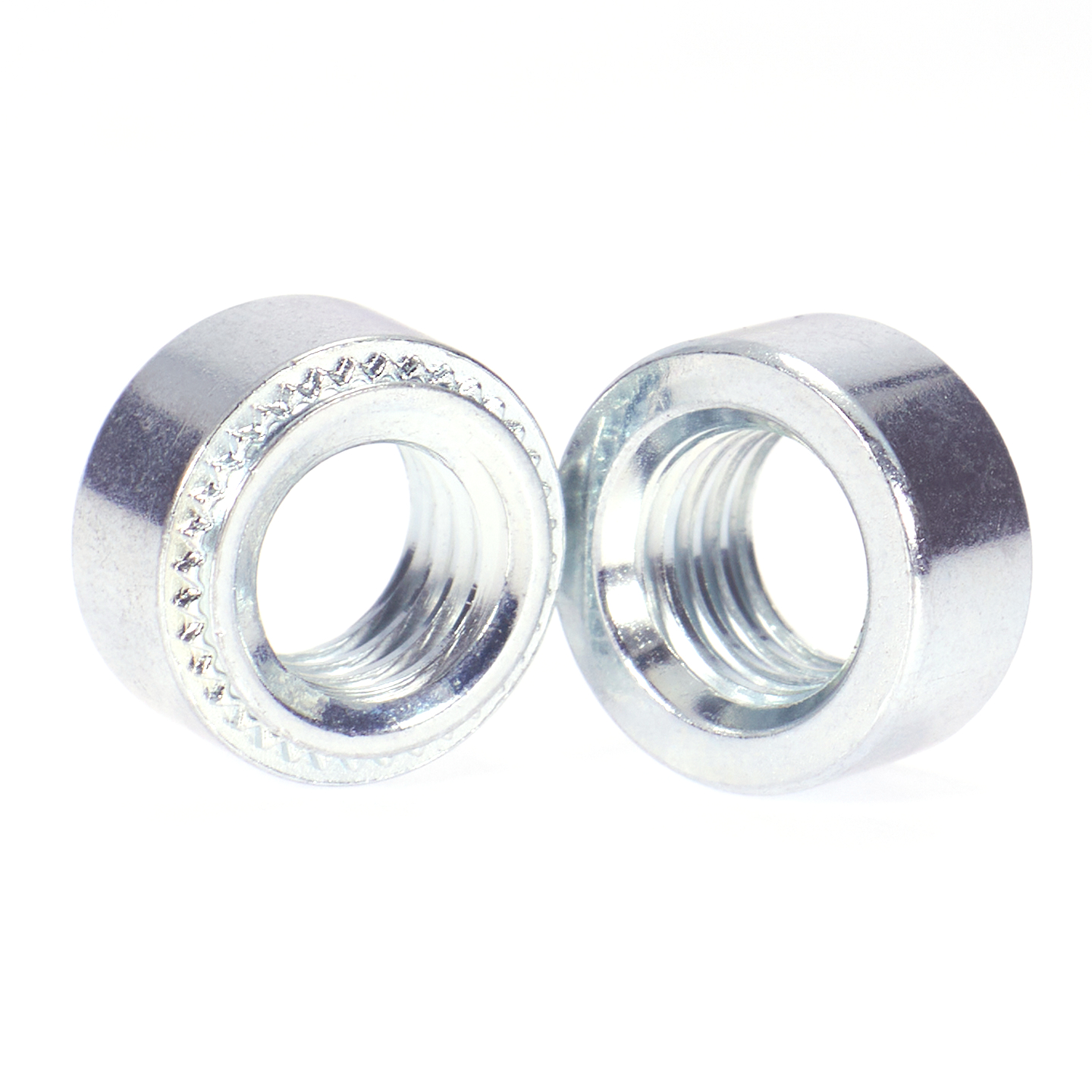

S 型
- 材质：采用10B21型碳钢，表面镀锌；中性盐雾 48H。
- 性能特点：具有较好的防锈性能。
- 应用场景：适用于冷轧板。

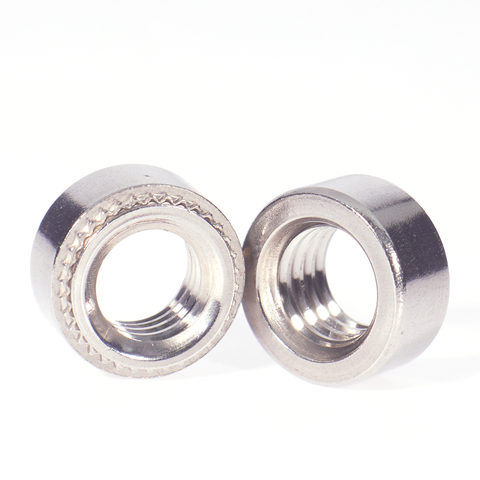

CLS 型
- 材质：采用304不锈钢冷镦，表面钝化；中性盐雾 96H。
- 性能特点：具有更高的防锈性能和耐腐蚀性。
- 应用场景：适用于铜板、铝板。

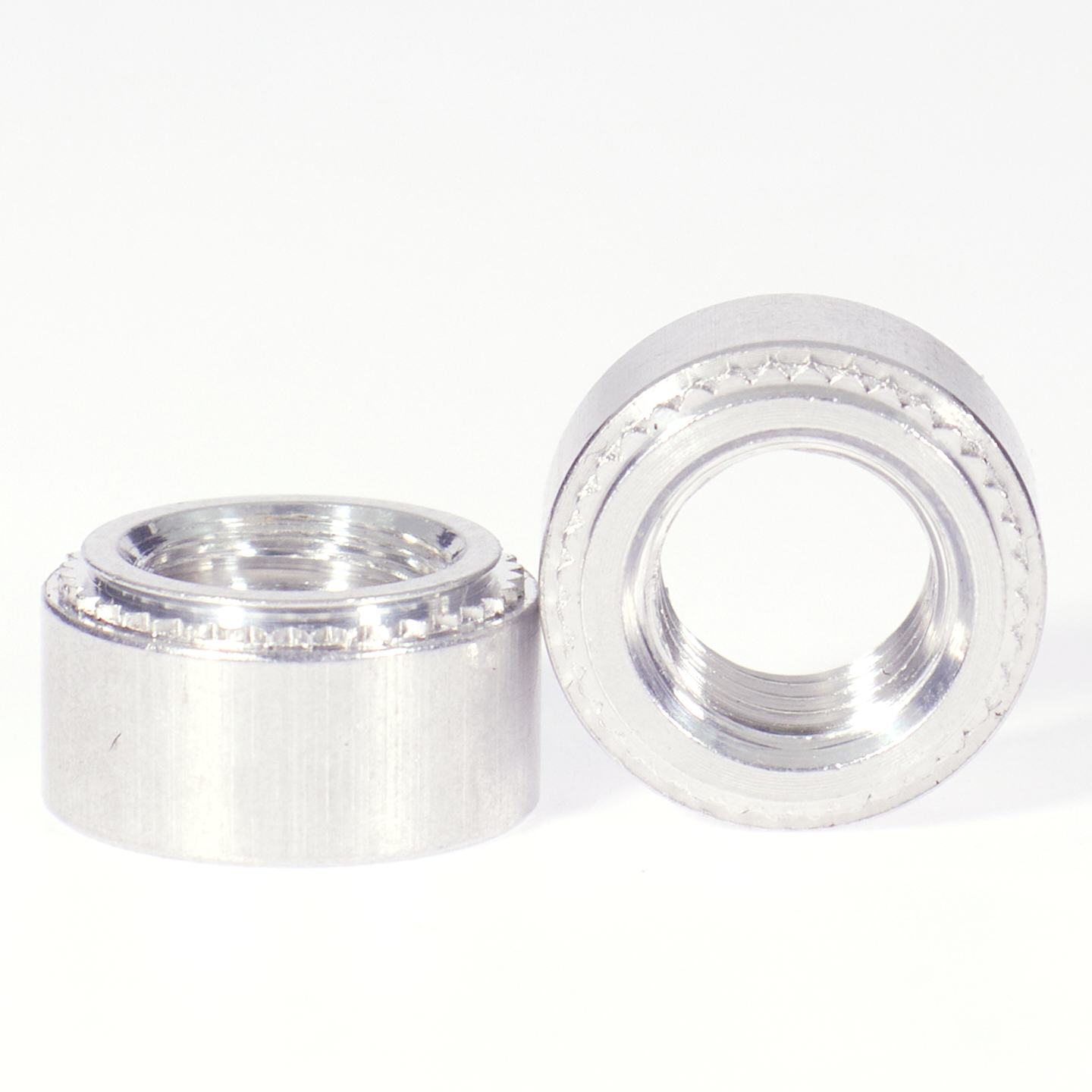

CLA 型
- 材质：采用 6063型铝合金，中性盐雾 48H。
- 性能特点：具有较高的防锈和耐腐特性。
- 应用场景：适用于铜板、铝板。如有氧化要求,需用CLA螺母

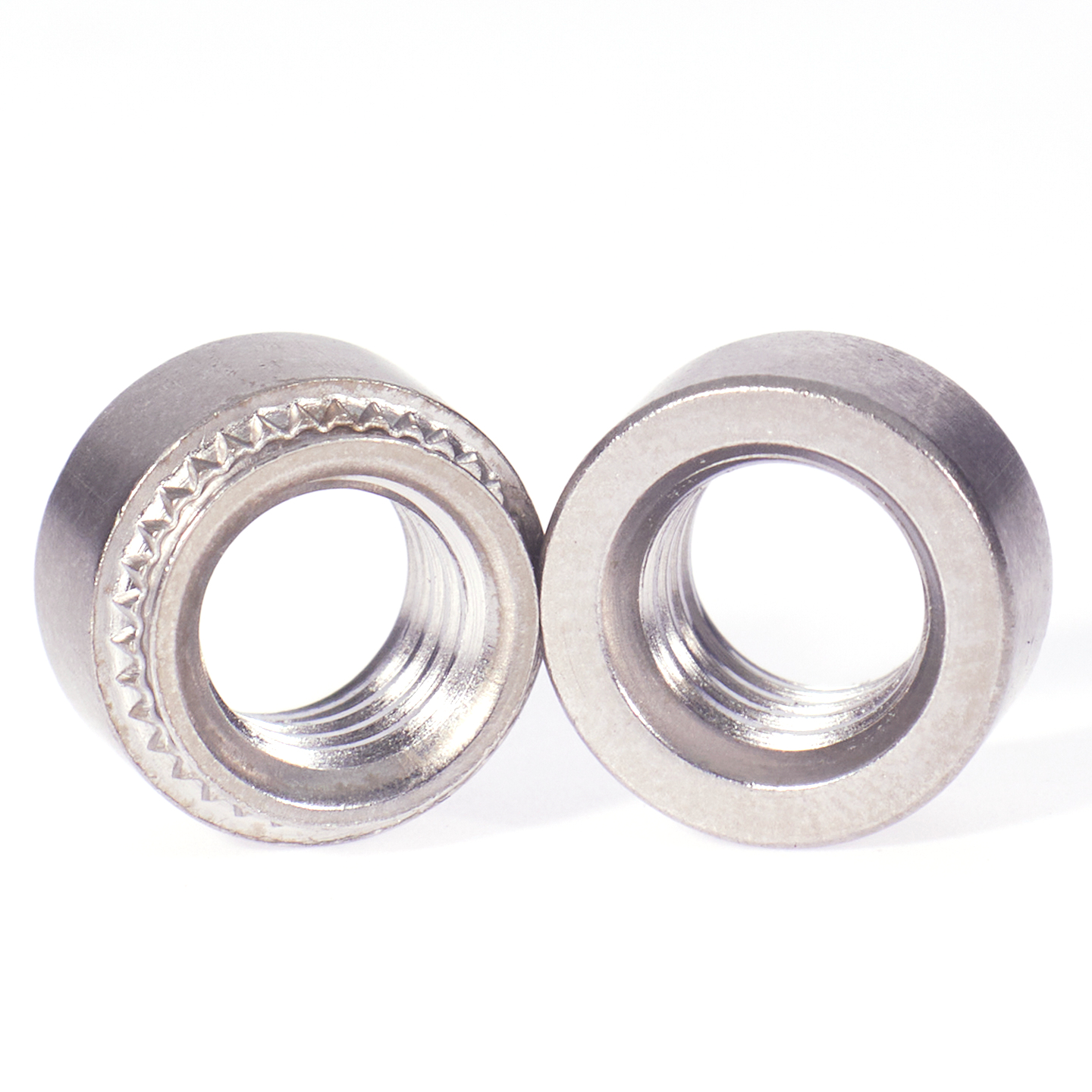

SP 型
- 材质：一般采用410系列不锈钢；真空热处理，硬度 HRC38~48；表面钝化。
- 性能特点：硬度高，防锈性能一般。
- 应用场景：适用于不锈钢板。
产品展示

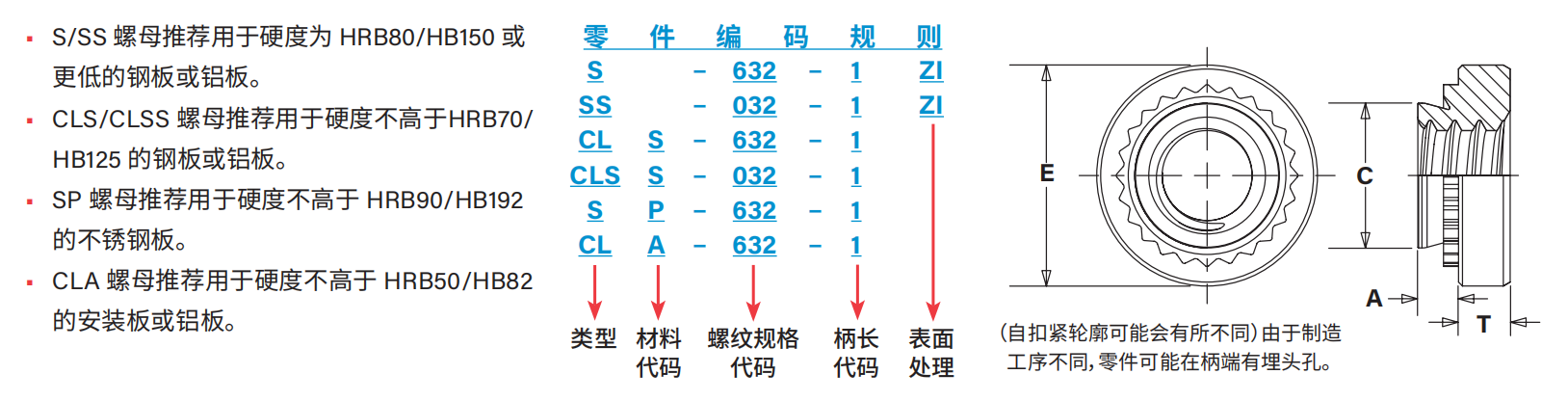

压铆螺母规格表（公制）（M2 ~ M12）
| 螺纹 | 型号 | 规格代号 | A 值 | 最小板厚 | 板孔径 +0.08 |
C Max. -0.1 |
E ±0.25 |
T ±0.1 |
最小边距 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | CLS | SP | |||||||||
| M2*0.4 | S | CLS | SP | 0 | 0.76 | 0.8–1 | 4.25 | 4.22 | 6.35 | 1.5 | 4.8 |
| 1 | 0.97 | 1 | |||||||||
| 2 | 1.37 | 1.4 | |||||||||
| 3 | 2.21 | 2.3 | |||||||||
| M2.5*0.45 | S | CLS | SP | 0 | 0.76 | 0.8–1 | 4.25 | 4.22 | 6.35 | 1.5 | 4.8 |
| 1 | 0.97 | 1 | |||||||||
| 2 | 1.37 | 1.4 | |||||||||
| 3 | 2.21 | 2.3 | |||||||||
| M3*0.5 | S | CLS | SP | 0 | 0.76 | 0.8–1 | 4.25 | 4.22 | 6.35 | 1.5 | 4.8 |
| 1 | 0.97 | 1 | |||||||||
| 2 | 1.37 | 1.4 | |||||||||
| 3 | 2.21 | 2.3 | |||||||||
| M3.5*0.6 | S | CLS | SP | 0 | 0.76 | 0.8–1 | 4.75 | 4.73 | 7 | 1.5 | 5.6 |
| 1 | 0.97 | 1 | |||||||||
| 2 | 1.37 | 1.4 | |||||||||
| 3 | 2.21 | 2.3 | |||||||||
| M4*0.7 | S | CLS | SP | 0 | 0.76 | 0.8-1 | 5.4 | 5.38 | 8 | 2 | 6.9 |
| 1 | 0.97 | 1 | |||||||||
| 2 | 1.37 | 1.4 | |||||||||
| 3 | 2.21 | 2.3 | |||||||||
| M5*0.8 | S | CLS | SP | 0 | 0.76 | 0.8-1 | 6.35 | 6.33 | 8.64 | 2 | 7.1 |
| 1 | 0.97 | 1 | |||||||||
| 2 | 1.38 | 1.4 | |||||||||
| 3 | 2.21 | 2.3 | |||||||||
| M6*1 | S | CLS | SP | 00 | 0.89 | 0.92 | 8.75 | 8.72 | 11 | 4.08 | 8.6 |
| 0 | 1.15 | 1.2 | |||||||||
| 1 | 1.37 | 1.4 | |||||||||
| 1.9 | 1.9 | 1.95 | |||||||||
| 2 | 2.21 | 2.3 | |||||||||
| 3 | 3.05 | 3.8 | |||||||||
| M8*1.25 | S | CLS | SP | 00 | 0.97 | 1 | 10.5 | 10.47 | 12.7 | 5.47 | 9.7 |
| 0 | 1.15 | 1.2 | |||||||||
| 1 | 1.37 | 1.4 | |||||||||
| 2 | 2.21 | 2.3 | |||||||||
| 3 | 3.05 | 3.18 | |||||||||
| M10*1.5 | S | CLS | SP | 0 | 1.60 | 1.7 | 14 | 13.97 | 17.35 | 7.48 | 13.5 |
| 1 | 2.21 | 2.3 | |||||||||
| 2 | 3.05 | 3.18 | |||||||||
| M12*1.75 | S | CLS | SP | 0 | 2.48 | 2.5 | 17 | 16.9 | 20 | 8.5 | 18 |
| 1 | 3.05 | 3.18 | |||||||||
| 2 | 6.00 | 6.1 | |||||||||
注：S=碳钢，CLS=不锈钢，SP=不锈铁；单位：mm。不同厂商/批次可能略有差异，本表用于工程参考。
压铆螺母规格表（英制）
| 螺纹 | 材料 | 螺纹代号 | 规格代号 | A 值 Max. | 最小板厚 | 板孔径 +.003 / -.000 |
C Max. | E ±.010 |
T ±.010 |
最小边距 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | CLS | SP | ||||||||||
| .086-56 (#2-56) |
S | CLS | SP | 256 | 0 | .030 | .030 | .166 | .165 | .250 | .070 | .19 |
| 1 | .038 | .040 | ||||||||||
| 2 | .054 | .056 | ||||||||||
| .099-48 (#3-48) |
S | CLS | — | 348 | 0 | .030 | .030 | .166 | .165 | .250 | .070 | .19 |
| 1 | .038 | .040 | ||||||||||
| 2 | .054 | .056 | ||||||||||
| .112-40 (#4-40) |
S | CLS | SP | 440 | 0 | .030 | .030 | .166 | .165 | .250 | .070 | .19 |
| 1 | .038 | .040 | ||||||||||
| 2 | .054 | .056 | ||||||||||
| 3 | .087 | .090 | ||||||||||
| .138-32 (#6-32) |
S | CLS | SP | 632 | 0 | .030 | .030 | .1875 | .187 | .280 | .070 | .22 |
| 1 | .038 | .040 | ||||||||||
| 2 | .054 | .056 | ||||||||||
| 3 | .087 | .090 | ||||||||||
| .164-32 (#8-32) |
S | CLS | SP | 832 | 1 | .038 | .040 | .213 | .212 | .310 | .090 | .27 |
| 2 | .054 | .056 | ||||||||||
| 3 | .087 | .090 | ||||||||||
| .190-24 (#10-24) |
S | CLS | SP | 024 | 1 | .038 | .040 | .250 | .249 | .340 | .090 | .28 |
| 2 | .054 | .056 | ||||||||||
| 3 | .087 | .090 | ||||||||||
| .190-32 (#10-32) |
S | CLS | SP | 032 | 1 | .038 | .040 | .250 | .249 | .340 | .090 | .28 |
| 2 | .054 | .056 | ||||||||||
| 3 | .087 | .090 | ||||||||||
| .216-24 (#12-24) |
S | CLS | SP | 1224 | 1 | .038 | .040 | .277 | .276 | .370 | .130 | .31 |
| 2 | .054 | .056 | ||||||||||
| 3 | .087 | .090 | ||||||||||
| .250-20 (1/4-20) |
S | CLS | SP | 0420 | 1 | .054 | .056 | .344 | .343 | .440 | .170 | .34 |
| 2 | .087 | .090 | ||||||||||
| 3 | .120 | .125 | ||||||||||
| .250-28 (1/4-28) |
S | CLS | SP | 0428 | 1 | .054 | .056 | .344 | .343 | .440 | .170 | .34 |
| 2 | .087 | .090 | ||||||||||
| 3 | .120 | .125 | ||||||||||
| .313-18 (5/16-18) |
S | CLS | SP | 0518 | 1 | .054 | .056 | .413 | .412 | .500 | .230 | .38 |
| 2 | .087 | .090 | ||||||||||
| 3 | .120 | .125 | ||||||||||
| .313-24 (5/16-24) |
S | CLS | SP | 0524 | 1 | .054 | .056 | .413 | .412 | .500 | .230 | .38 |
| 2 | .087 | .090 | ||||||||||
| 3 | .120 | .125 | ||||||||||
| .375-16 (3/8-16) |
S | CLS | SP | 0616 | 1 | .087 | .090 | .500 | .499 | .560 | .270 | .44 |
| 2 | .120 | .125 | ||||||||||
| 3 | .235 | .250 | ||||||||||
| .375-24 (3/8-24) |
S | CLS | SP | 0624 | 1 | .087 | .090 | .500 | .499 | .560 | .270 | .44 |
| 2 | .120 | .125 | ||||||||||
| 3 | .235 | .250 | ||||||||||
| .438-20 (7/16-20) |
S | — | — | 0720 | 1 | .087 | .092 | .562 | .561 | .687 | .311 | .562 |
| — | — | — | ||||||||||
| .500-13 (1/2-13) |
S | CLS | — | 0813 | 1 | .120 | .125 | .656 | .655 | .810 | .360 | .63 |
| 2 | .235 | .250 | ||||||||||
| .500-20 (1/2-20) |
S | CLS | — | 0820 | 1 | .120 | .125 | .656 | .655 | .810 | .360 | .63 |
| 2 | .235 | .250 | ||||||||||
